JBL

BassPro SL

Details
Variations

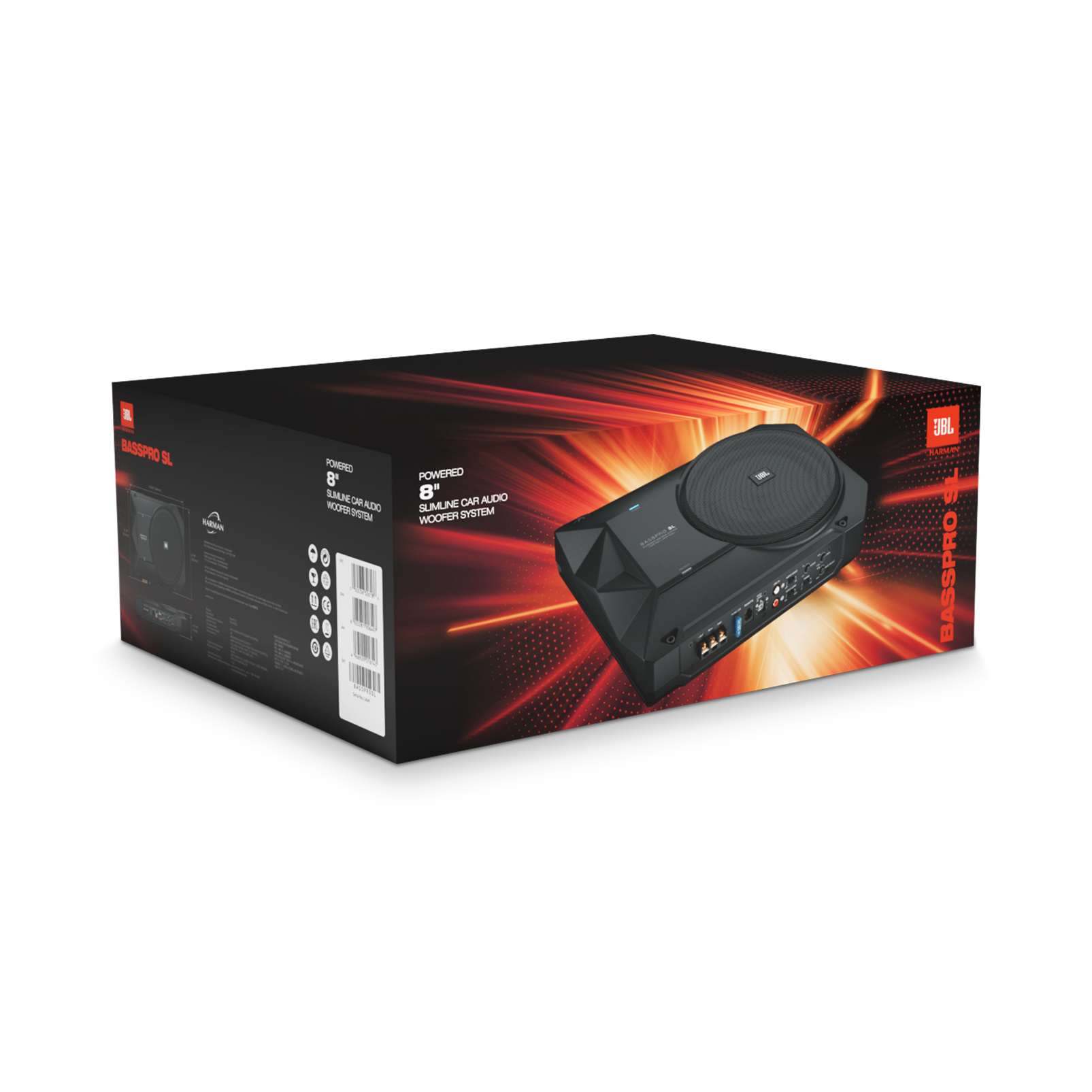

Powered, 8" (200mm) car audio under seat woofer system

Product Actions
Big bass boost from a compact woofer enclosure

The BassPro SL powered woofer fits under the front seat of many vehicles, and adds powerful bass to any car audio system. An electronic crossover control and flexible EQ adjustments let you tune the BassPro SL to your system, your car’s acoustic environment and your listening preferences. The energy-efficient digital amplifier provides a powerful engine to drive the subwoofer while staying cool even when driven hard. The BassPro SL delivers great bass output without taking up a lot of space.

Item# BASSPRO SL

General Specifications

Amplifier Power 125W RMS
Fuse 20A
Maximum Current Draw 12A
Quiescent Current Draw less than 800mA
Input Sensitivity 0.2V – 2V Line-Level Input; 2V – 20V High-Level Input

Audio Specifications

Frequency Response 35Hz – 120Hz
Crossover Frequency 50Hz – 120Hz
Crossover Slope 12dB/octave
Bass Boost 0dB to +9dB @ 70Hz

Dimensions

Width 9-7/8"; (250mm)
Length 13-9/16"; (344mm)

Woofer Specifications

Woofer 8"; (200mm)
Click here for a complete list of all specs for this product

Spec Sheet (EN)

4 MB
  • 1 powered woofer enclosure
  • 4 mounting screws
  • Owner’s manual

Search Result For ""

BassPro SL is rated 4.8 out of 5 by 44.
Rated 5 out of 5 by from Deep bass Regular cab pickup have 2,one under each seat. Bass is deep and can feel it. Adjustments on stereo head unit are critical. Have 45 watt per channel amp for other JBL speakers,GTOs and CLUBs. This is blendable easily. Does not disturb useful space. They fit nicely. Have nice look also,but nobody sees them : )
Date published: 2018-06-02
Rated 5 out of 5 by from It works! I finally got it to fit into my 08 Smart car and hooked up. Sounds great.
Date published: 2018-05-20
Rated 5 out of 5 by from Great sound for the size! I had this installed in my 2015 Jeep Wrangler and what a difference it made! It fit right under my seat and sounds great. When I turn it up, the mirrors shake and makes the whole jeep thump. This is perfect to buy if you want decent bass for a low price and a sub that can hide under your seat. Overall I'm very happy with this sub!
Date published: 2018-03-25
Rated 5 out of 5 by from Just right! This is the perfect unit for those who what a low end without headache of a large multi component system. Easy install with the right amount of bass. Will most likely install in my next vehicle as well.
Date published: 2018-03-23
Rated 5 out of 5 by from Just right At first I wasn't impressed after the initial install. All of their experience was with a competitor's hideaway sub. Two weeks later a different tech tweaked the gain and cross over and the JBL came alive. What a sub. Mind you, it does distort a little if the volume is maxed out on extremely low and pronounced bass, but overall this sub does what it is made to do. My head unit is stock. Also, for the first month or so it was just the 6 in door speakers from JBL w/o the sub, so it was real disappointing with the sub until the settings were adjusted.
Date published: 2018-03-10
  • y_2018, m_11, d_14, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.9
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_44
  • loc_en_GB, sid_bassprosl, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_jbl

I have a Jeep and I just installed this woofer on my system. The blue powerlight on this thing stays on even if everything is off. Is that normal?

Asked by: Jeff Powell
Disregard my answer about the blue light... mine did turn off. Just took a couple min. :-/
Answered by: Rob3dr
Date published: 2018-08-21

I have a 2016 GMC Sierra With the Bose speakers, Will this cause a problem from the system if I add the Subwoofer to it

Asked by: barnesqw45
No it will not negatively effect anything. If you just have a properly trained technician catch the sign and turn on lead from the correct outputs. All should be good when done correctly. Most MECP TECHS are more than capable.
Answered by: 22 year technician
Date published: 2018-07-11

I would like to know the dimensions please

Asked by: Gregkoul
Hi The dimensions are 344mm x 250mm x 71mm
Answered by: Mogens
Date published: 2017-12-02

Hi, I'm planning in installing a JBL GTR-104 and running a cable from the pre-out to the sub. I want to know if the BassPro SL will be able to filter-out the higher frequencies as I suppose the amp will transmit the whole frequency spectrum.

Asked by: lexmarkpol
Yes, you can connect the outputs from the GTR-104 directly to the BASSPRO SL. Then use the crossover in the BASSPRO SL to filter out the higher frequencies.
Answered by: Miko at Customer Service
Date published: 2017-12-02

Can this be mounted vertical against a wall or only flat on the floor?

Asked by: Northmnsledder
The BASSPRO SL can be installed vertically, but we recommend otherwise. You can get the best experience from the BASSPRO SL when installed vertically, with around 3-4 inches distance from a panel. This is why, ideally, under a seat would work best. Doing this can give you better low frequency response.
Answered by: Ren at Customer Service
Date published: 2017-12-02

What is the best JBL speaker and amplifier for BassPro SL?

Asked by: Efriza
We would like to work with you directly to help you with your issue. I noticed that you are in Malaysia, please submit a case at support.apac@harman.com and our Customer Service team will be glad to further assist you.
Answered by: Mario at Customer service
Date published: 2017-12-02

Will the BassPro SL work in a 2016 RAV 4 Hybrid Limited

Asked by: Herctam
Thank you for your question, this would work with any vehicle, depending on the connection on your car. The standard wiring is red-12v power, black- negative ground, blue for remote. and audio inputs from your head unit.
Answered by: Randy at JBL
Date published: 2017-12-02

Can I use this on a 2006 Toyota RAV4.

Asked by: Yanira
Yes, as per the "find what fits your car" feature on the website, the BASSPRO SL will fit your 2006 Toyota RAV4.
Answered by: Amir at Customer Service
Date published: 2017-12-02
