Patented 2410H-2 1" (25mm) compression driver with High Definition Imaging ™ geometry horn.

5.25" (130mm) Advanced Aluminum Matrix cast-frame woofers.

Choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers.
Features

Dual rear-firing, computer-optimized flared ports.

Advanced crossover network

Dual sets of gold-plated binding posts with shorting straps.

Black cloth, magnetically attached grille.
Specs & Downloads
Item# JBLHDI4500BLQ
Description

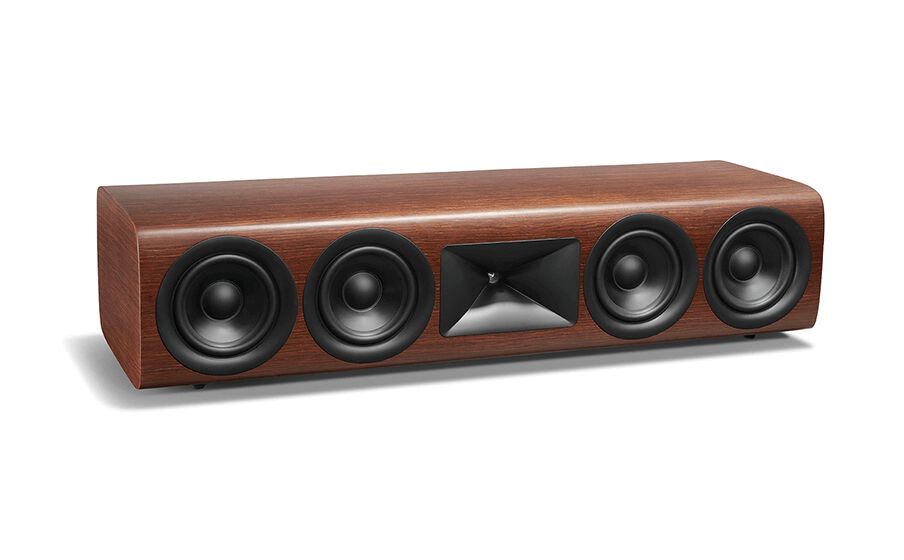

HDI-4500
Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-4500 is the anchor of a complete HDI Series surround system. This center channel loudspeaker features a 2 ½-way design with patented High-Definition Imaging (HDI™) horn geometry, the patented 2410H-2 1-inch (25mm) compression driver, and quadruple 5.25-inch (130mm) Advanced Aluminum Matrix cone woofers for powerful dynamics and incredibly accurate sound reproduction.
General Specifications
- Enclosure Type
- Bass-reflex design with rear-firing port
- High Frequency Transducer
- 1-inch (25mm) Teonex compression driver
- Low / Mid Frequency Transducers
- Four 5.25-inch (130mm) black Advanced Aluminum Matrix cone, cast frame woofers
- Crossover Frequency
- 600Hz, 2200Hz
- Sensitivity (2.83V @ 1M)
- 90dB
- Nominal Impedance
- 4 Ohm
- Recommended Amplifier Power
- 20W – 250W
- Frequency Response
- 50Hz – 30kHz (-6dB)
- Dimensions (H x W x D)
- 7.48 x 33.13 x 12.3” (190 x 841.4 x 312.5mm)
- Net Weight
- 44.33 lbs (20.11kg)
