JBL Stage A135C
£279.99
5.0 (1)
Write a review
JBL Stage A135C 6 x 3-inch (76mm) Polycellulose Low-Frequency Woofer - Image

6 x 3-inch (76mm) Polycellulose Low-Frequency Woofer

JBL Stage A135C New High Definition Imaging (HDI) Waveguide - Image

New High Definition Imaging (HDI) Waveguide

JBL Stage A135C 1-inch (25mm) Aluminum Dome Tweeter - Image

1-inch (25mm) Aluminum Dome Tweeter

Features

JBL Stage A135C Two-tone Unique Design for wood - Image

Two-tone Unique Design for wood

Specs & Downloads

Item# JBLA135CBLK

Description

JBL A135C

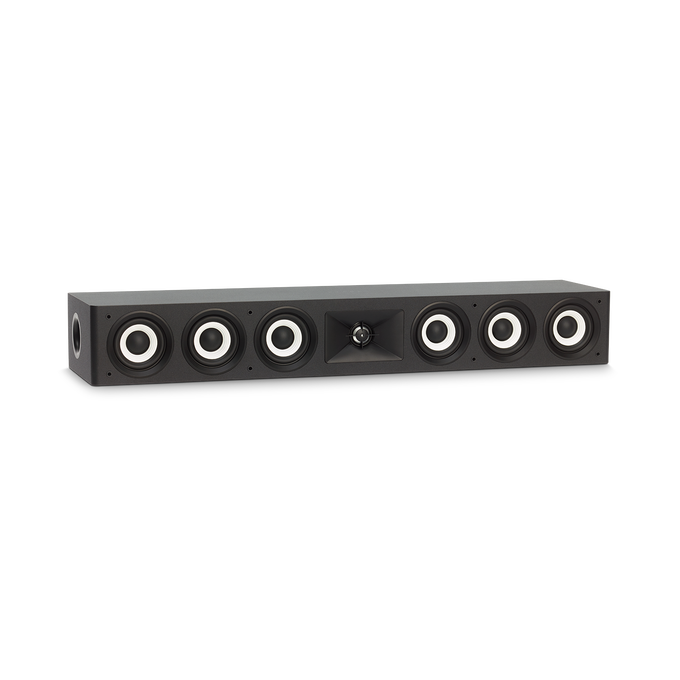

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A135C is the 6 x 3-inch 2-way center channel loudspeaker of the JBL Stage Series. The narrow footprint features a 2-way design with patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and 6 x 3-inch (76mm) Polycellulose cone woofers for signature JBL bass.

General Specifications

2 way, 6 x 3" woofer, 1" aluminum tweeter center loudspeaker

6 x 3" (76mm) Polycellulose Low-Frequency Woofer

New High Definition Imaging (HDI) Waveguide

1” (25mm) Aluminum Dome Tweeter

Recommended Amplifier Power
20 – 150W
Frequency Response
75Hz – 40kHz
Sensitivity
90dB @ 1M, 2.83V
Nominal Impedance
6 Ohms
Crossover Frequencies
2.5kHz
Enclosure Type
Bass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)
745 x 166 x 104mm
Weight
16.42 lbs (7.45kg)

Documents & Downloads

Reviews and Q&A

Customer Reviews

Rated 5 out of 5 by from Great addition/replacement! I bought this as an upgrade from the LOT20 Center Channel speaker that I was using. I had no problems with the LOT20. Every couple years I upgrade. My surround systems consists of 3 pair of Control 1 stand alone speakers, 2 SUB 250P subwoofers powered by a Yamaha RX-A780 7.2 Surround Receiver. I could hear a marked difference in the clarity and strength of the audio in both music and video audio strength and signal. I'm a long time JBL audiophile dating back to 1984. I never look back.
Date published: 2020-03-05
  • y_2022, m_9, d_26, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_GB, sid_stagea135c, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_jbl
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 17ms
  • reviews, product

Product Q&A

I have some older JBL's-northridge e-100,nd310,rm10, s-center2,s120p2,stageA120p and I use a Marantz sr6014. Would any of your current center speakers be a noticeable improvement over my current center speaker.

Asked by: Acajoe
I guess the answer is no. What more info do you need?
Answered by: Acajoe
Date published: 2021-06-06

Does this use the optical-audio port for connection, or perhaps HDMI?

Asked by: Scotty O
Our JBL Stage A135C loudspeaker uses cable wires for connection. It is a part of our Stage series of loudspeakers and can’t use optical-audio or HDMI connections. It also needs an amplifier as it can’t be used as a standalone speaker. Check out this link for more information: https://bit.ly/2o2bBUM
Answered by: Rhae
Date published: 2021-06-06

How well would the A135C work as a center channel, with the SP8II as the front and the SP8CII as the rear channels in a 5.1 set up?

Asked by: JODO
Our JBL Stage A135C wouldn't be that of a good match with the other speakers you've mentioned. You may consider the Arena 55IW for a better match with your in-wall speakers as they have almost similar tweeters. If you need more help, you may reach out to us here: https://support.jbl.com/us/en/contact
Answered by: Jem at Customer Support
Date published: 2021-06-06

Can this be used as a center speaker for TV audio in a 7.1 JBL surround system?

Asked by: rbjosh1
Our JBL Stage A135C can be used as a center speaker in a 7.1 surround system. If you have more questions, please contact us here: https://bit.ly/2zwFkYM
Answered by: Mario at Customer service
Date published: 2021-06-06

Will this pair well with my 306P MKII's?

Asked by: treg
Thank you for your question. Our JBL Stage A 125C would play well with the JBL 306P MK II as the frequency response of the StageA125C is 75Hz – 40kHz while the 306P MK II has a frequency response of 47Hz – 20kHz (±3dB). If you need more details, please contact us so we can help. https://bit.ly/2zwFkYM
Answered by: Mario at Customer service
Date published: 2021-06-06

how will this pair with the SP8II?

Asked by: papi2282
You would need a receiver in order for any signals to be received or transmitted between the two devices. If you have any more questions, please contact us so we can assist you via this link: https://bit.ly/2K52L2x
Answered by: Rhae
Date published: 2021-06-06

Will this work well as a center if the mains are Studio 280's ? or what would be the best center to match with then that's still available ? thanks

Asked by: Bobby D
Hi there, thanks for your interest. JBL Stage A135C is not that good of a match for your front speakers as its tweeters are different. What we do recommend is our JBL Studio 225C as it has a better match with the tweeter of your JBL Studio 280 that will produce a good sonic balance. For more information, you can visit this page: https://www.harmanaudio.com/refurbished-home-audio/STUDIO225CBK-Z.html
Answered by: Jem at Customer Support
Date published: 2021-06-06

Will this center serve as a good replacement on my older HK system? HKTS-18: 200W amplifier power (RMS) 10" woofer, bass-reflex enclosure 8 ohm nominal impedence 3/4" dome, video-shielded tweeter Dual 3" drivers, video-shielded

Asked by: Mikey315
We would like to get more information on your entire setup to help you out, please contact us so we can assist you:https://bit.ly/2zwFkYM
Answered by: Mario at Customer service
Date published: 2021-06-06
