JBL SA750
JBL SA750 Retro-styled integrated amplifier with modern features - Image

Retro-styled integrated amplifier with modern features

JBL SA750 High-resolution DAC with UPnP Streaming, Apple Airplay2 and Google Chromecast built-in - Image

High-resolution DAC with UPnP Streaming, Apple Airplay2 and Google Chromecast built-in

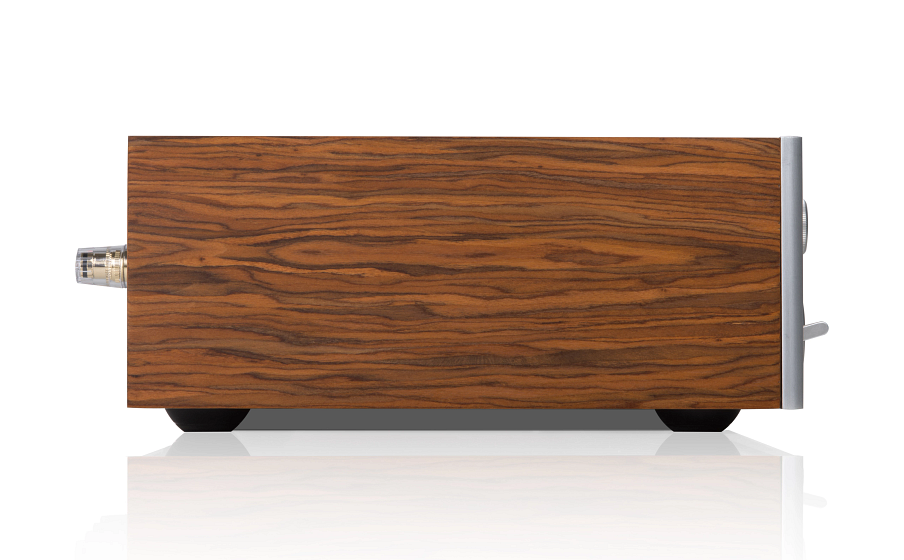

JBL SA750 Natural wood veneer side panels to match JBL loudspeakers - Image

Natural wood veneer side panels to match JBL loudspeakers

Features

JBL SA750 120W of power per channel into 8Ω, 220W into 4Ω - Image

120W of power per channel into 8Ω, 220W into 4Ω

JBL SA750 DIRAC Live to fine-tune the output of speakers and subwoofers to the listening space (Calibration microphone included). - Image

DIRAC Live to fine-tune the output of speakers and subwoofers to the listening space (Calibration microphone included).

JBL SA750 4 digital and 5 analog inputs including MM/MC Phonograph input - Image

4 digital and 5 analog inputs including MM/MC Phonograph input

Specs & Downloads

Item# JBLSA750WALAM

Description

JBL SA750

The SA750 is a throw-back to early JBL receivers. But with a modern amber LED display, exceptional dynamic range and connectivity, the SA750 is a modern classic rooted in today’s best technologies. It is designed to complement JBL Classic and Studio Monitor loudspeakers. With the JBL SA750 you can play your favorite music over with Chromecast built-in, Apple AirPlay2, Roon, or the Harman MusicLife app. It includes DIRAC Live to fine-tune the output of your speakers into the listening room. A high-performance, high-resolution DAC ensures exceptional performance every time. Class G amplification utilises multiple power supplies to deliver the first 20W per channel with no distortion. The amplifier can deliver continuous output of 120W per channel for sustained dynamic music. With eight digital and analog inputs, including MM/MC phono inputs, the SA750 is ready for any audio source.

General Specifications

Frequency Response
20Hz – 20kHz ± 1dB
Nominal Sensitivity
1V
Input Impedance
10kΩ
Power output both channels driven
120W into 8Ω, 220W into 4Ω
Maximum Input
6Vrms
Total harmonic distortion + noise
0.002%
Signal/Noise ratio (A-wtd) 50W, ref. 1V input
120dB
Mains Voltage
110-120V or 220-240V, 50-60Hz
Maximum Power Consumption
800W
Product Dimensions (WxHxD, including feet, control knob, and speaker terminals)
449 x 114 x 327mm
Product Weight
12kg
Shipping Weight
14kg
Warranty
5 Years
