Studio 698
0.0 (0)
Write a review
Studio 698 Top-graded PolyPlass cones - Image

Top-graded PolyPlass cones

Studio 698 High-quality sounding compression drivers - Image

High-quality sounding compression drivers

Studio 698 New, appealing form factor - Image

New, appealing form factor

Features

Studio 698 High-definition imaging Waveguide with high-frequency compression driver - Image

High-definition imaging Waveguide with high-frequency compression driver

Specs & Downloads

Item# JBLS698W

Description

Studio 698

The new JBL Studio 6 speaker system is everything your inner audiophile was hoping for. Complete with advanced PolyPlas cones, powerful acoustics speaker drivers, and fitted with an all-new, high-definition imaging waveguide using a high-frequency compression driver, your home listening experience will never be quite the same.

General Specifications

Dual 8", 6" mid, 3-way compression driver floor standing loudspeaker

6" (152mm) PolyPlas Mid-range Transducer

Dual 8” (203mm) PolyPlas cone Low-Frequency Transducer

High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver

Recommended Amplifier Power
Max 250W
Frequency Response
36Hz – 40kHz
Sensitivity
90dB @ 1M, 2.83V
Nominal Impedance
6 Ohms
Crossover Frequencies
320 Hz, 1.8 kHz
Enclosure Type

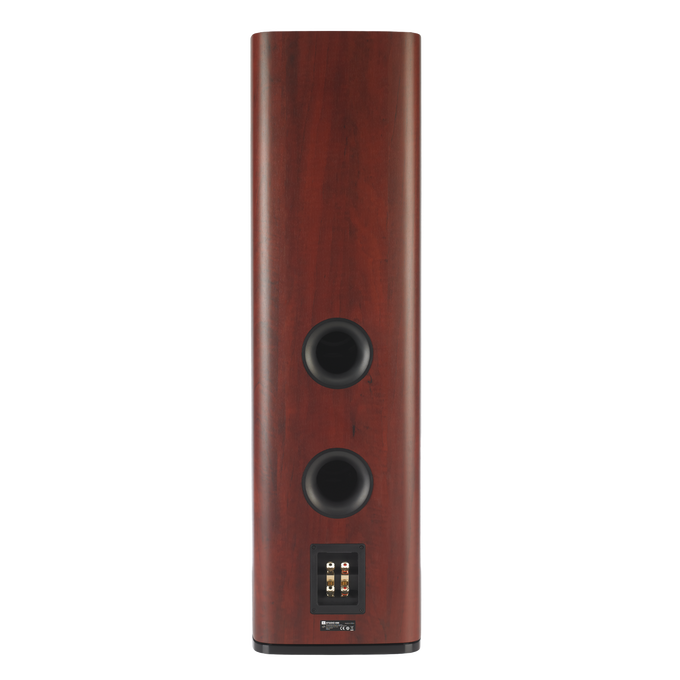

Bass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)
300 x 400 x 1058mm
