JBL Stage A170
Ship to
,
Payment
Saved ending in
JBL Stage A170
- SOLD OUT
- 2 x 5.25-inch (133mm) Polycellulose Low-Frequency Woofer
- New High Definition Imaging (HDI) Waveguide
- 1-inch (25mm) Aluminum Dome Tweeter
- Two-tone Unique Design for wood
Please click PERSONALIZE to get started or select a design
Your zip code edit
This item is currently not available.
- SOLD OUT
2 x 5.25-inch (133mm) Polycellulose Low-Frequency Woofer
New High Definition Imaging (HDI) Waveguide
1-inch (25mm) Aluminum Dome Tweeter
Features
Two-tone Unique Design for wood
Specs & Downloads
Item# JBLA170W
Description

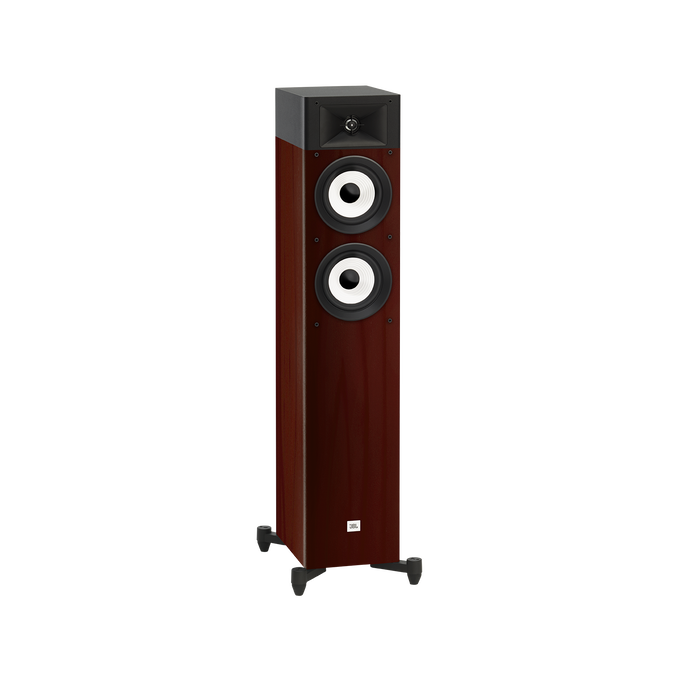

JBL A170
Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A170 is the most compact floorstanding loudspeaker of the JBL Stage Series. The narrow footprint features a 2 ½-way design with patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and dual 8-inch (200mm) Polycellulose cone woofers for signature JBL bass.
General Specifications
- Recommended Amplifier Power
- 20 – 200W
- Frequency Response
- 44Hz – 40kHz
- Sensitivity
- 89dB @ 1M, 2.83V
- Nominal Impedance
- 6 Ohms
- Crossover Frequencies
- 1.8kHz, 2.8kHz
- Enclosure Type
- Bass-Reflex via Rear-Firing Tuned Port
- Dimensions (W x D x H)
- 190 x 255 x 930mm
- Weight
- 31.61 lbs (14.34kg)
2.5 way, dual 5.25", 1" aluminum tweeter floor standing loudspeaker
2 x 5.25" (133mm) Polycellulose Low-Frequency Woofer
New High Definition Imaging (HDI) Waveguide
1” (25mm) Aluminum Dome Tweeter
Documents & Downloads
Reviews and Q&A
Customer Reviews
Product Q&A
11-19 Stereophile quotes cost as $499.99/pr. and availablity in 2-tone wood. Are they incorrect for both aspects ?
On one aspect, yes. Our JBL Stage A170 is definitely made of two-tone unique design wood that produces rich and realistic audio. With the pricing, the US suggested retail price is $299.95 each. Check this link to get more info about the speaker: https://www.jbl.com/loudspeakers/JBLA170BLKAM.html
Date published: 2022-01-24
input power for this device?
It needs a receiver that is rated at 6 ohms and gives out power between 20- 200 W.
Date published: 2021-06-06
speaker handles up to 200w. Is that as if it's the only speaker in the array?
The 200w maximum amplifier power rating is for the individual speaker if it were the only one connected through an amplifier. Check out our spec sheet for our Stage speaker series for more information through this link: https://bit.ly/2XgiVKm
Date published: 2021-06-06
is this bluetooth?
Our JBL Stage A170 doesn’t feature Bluetooth connection capabilities. You would need to connect our Stage A170 to a receiver or amplifier via speaker wires. Check out our JBL Stage A170 owners' manual for more information through this link: https://bit.ly/2JxkcqH
Date published: 2021-06-06
I’d like to place these and/or similar size standing speakers horizontally in a custom media center, i.e. 3 ft height, and combine with a subwoofer etc...any concerns against this idea. I already own and love the L890. Thanks
We would like to get more information to help you out, please contact us so we can assist you:https://bit.ly/2zwFkYM
Date published: 2021-06-06
It is available in two colors - black and two tone wood. Where can I see an example of two tone wood ?
Thanks for your question. Our JBL Stage A170 only has a single color available. Our two-tone wood is a design made for our Stage A 170 speakers so it'll have rich and realistic audio. If you have more questions, please contact us so we can help you. https://bit.ly/2zwFkYM
Date published: 2022-11-10
Output RMS
A passive speaker doesn't have any output RMS but it can handle anything between 20-200W at 6 ohms from an amplifier/receiver.
Date published: 2021-06-06
Is there a specific subwoofer that is recommended for the A170 speakers?
You can use any subwoofer that will suit your style and sound preference. As for the JBL Stage A170, you can check on the Stage series subwoofer we're offering today. Just click this link to see more information about the JBL Stage A100P - https://www.jbl.com/home-audio/STAGE+A100P.html
Date published: 2021-06-06
