JBL

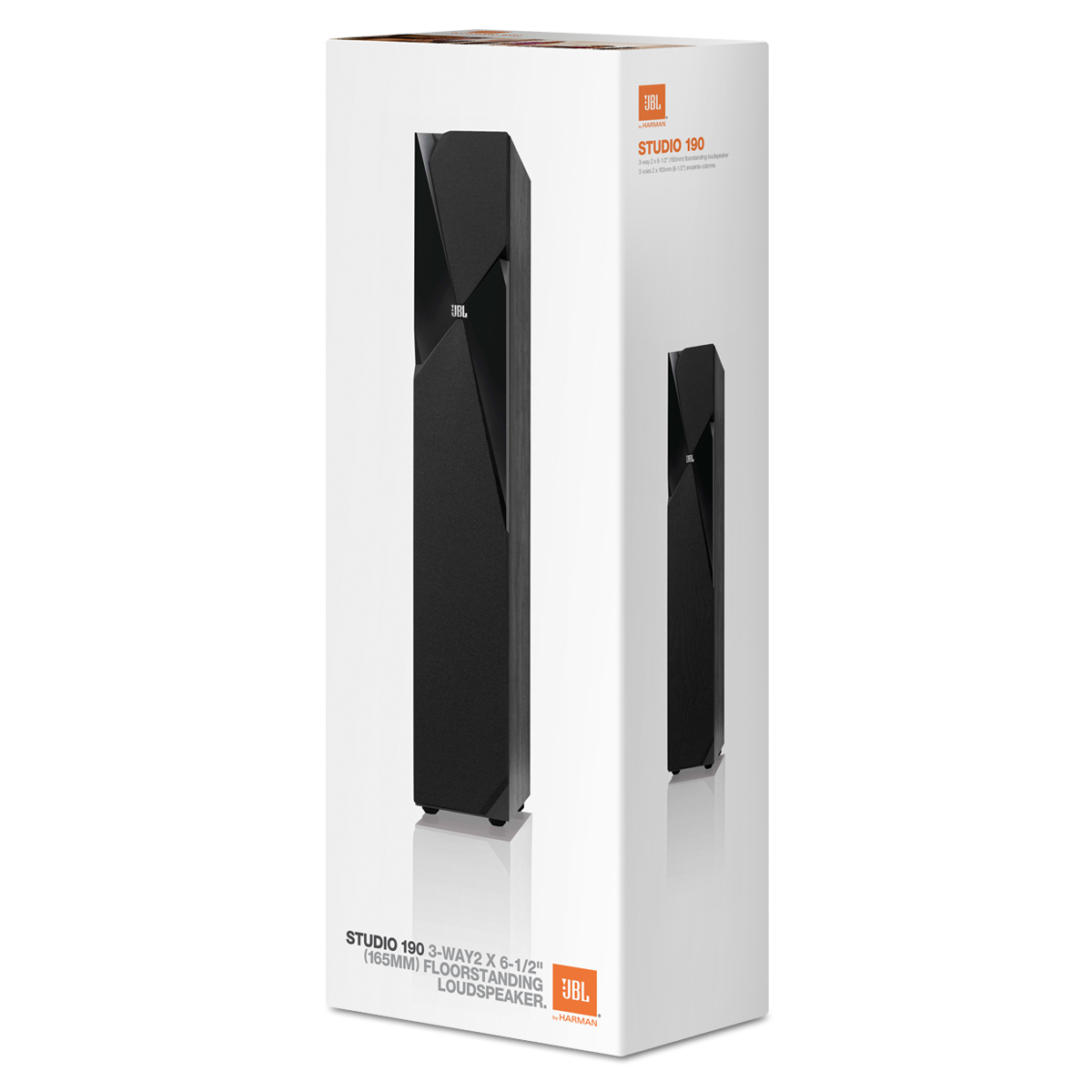

Studio 190

Details
Variations

400-watt, three-way, dual 6-1/2" floorstanding loudspeaker

Product Actions
Fill your room with vibrant sound.

The JBL® Studio 190 floorstanding loudspeaker lets you experience deep, resounding low frequencies, a fully detailed midrange and complex high-frequency sound, whether you play it at low and subtle or high, maximum-SPL playback levels. The Studio 190’s sound waves feel tangible, as if you could pick individual notes out of the air. The secret to the Studio 190’s exceptional performance lies in its advanced materials, with PolyPlas™ cones for the pair of low-frequency woofers and the single midrange driver, and a CMMD® Lite dome for the high-frequency tweeter. The result is reduced distortion and the virtual elimination of unwanted resonance, while precise cone movement maximizes the sound clarity, especially on voices. And the Studio 190 features a cabinet design that looks as alluring as it sounds. Featuring a signature JBL Weave design, the Studio 190 can stand out or blend in. It’s your choice.

Item# STUDIO 190

General Specifications

Wall-Mount Capable No
Finish Black
Series Studio 1 Series
Type 3-1/2-way dual floorstanding

Audio Specifications

Maximum Recommended Amplifier Power 200W
Nominal Impedance 8 ohms
Sensitivity (2.83V@1m) 90dB
Power Handling (Peak) 400 watts
Crossover Frequencies 800Hz, 3.2kHz, 6dB/octave
Frequency Response (-3dB) 40Hz – 22kHz
Power Handling (Recommended) 100 watts

Speaker Specifications

Midrange Transducer 4" (100mm) PolyPlas cone, magnetically shielded
High-Frequncy Transducer 1" CMMD Lite dome, magnetically shielded, in a Bi-Radial constant directivity waveguide
Low-Frequency Transducer Two 6-1/2" (165mm) PolyPlas cones, magnetically shielded

Dimensions

Width (in) 7-7/8
Weight (kg) 22.1
Height (mm) 1121
Depth (mm) 375
Width (mm) 200
Height (in) 44-1/8
Depth (in) 14-3/4
Weight (lb) 48.8
  • 1 Studio 190 floorstanding loudspeaker
  • Owner’s manual

Manuals & Downloads

The latest owner's manuals, quick start guides, and documents.

Search Result For ""

Studio 190 is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from Excellent Sound I bought these 4 months ago to upgrade my front pair in a 5.1 surround HTS and I am most happy I did. The highs are brilliantly clear and the lows are tight and not muddled. I do have a subwoofer, but these speakers can stand on their own in most cases. What really came as a pleasant surprise is that these speakers sound great not only in home theater applications but in reproducing music as well. Great looks, solid build, excellent sound reproduction. I highly recommend these speakers to all.
Date published: 2013-12-20
Rated 5 out of 5 by from Great Product This product sound was very clear and awesome product. I like the product very much.
Date published: 2012-10-26
  • y_2018, m_8, d_14, h_1
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_GB, sid_studio190, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_jbl

Is it blutooth capable and does it have a fiber optic input?

Asked by: Roel
The STUDIO 190 is a passive speaker, meaning that it must be connected to a receiver/amplifier in order to function. It is not a powered speaker and cannot be connected directly to any source.
Answered by: Joe At Customer Service
Date published: 2017-12-10
