ESCAPE THE EVERY DAY

Do you still remember the last time music put a big smile on your face? What it felt like when your body was infused with the amazing clarity and deep vibrations of the sound? There is no reason to miss that feeling when you are driving. When you rock out on the road and go places with Toyota, the incredible JBL sound comes along - every single day.

  • The collaboration
  • Car models
  • Features
  • Technologies

Tuned in to the
same wavelength

In 1996 JBL and Toyota teamed up with one very distinct mission: to bring the sound of legendary concerts and rock tours to your car. In a custom blend of art and science, we select, place and fine-tune each speaker to the interior of the vehicle. Hundreds of hours of dedicated work and precision adjustments go into the development of each JBL Toyota system. The result is a bold, vibrant sound. A sound that makes you feel the difference and hear the truth.

Car models

Aygo JBL Special Edition

Toyota Aygo JBL Special Edition

This is the model copy of the Aygo JBL Special Edition

HIGHLIGHTS

  • 5 speakers in 3 locations
  • Full-range Sound with wide Dispersion full range speakers
  • Exterior features highlighting the JBL brand

System overview

System Overview 3 2 2 1 1
12 ×25 mm Tweeters (IP)
22 ×150 mm Full Range Speakers (Front Doors)
3160 mm Subwoofer
Corolla

Toyota Corolla

The Toyota Corolla has everything you’d expect: bold, dynamic styling that immediately catches the eye, and an interior that offers a spacious, high-quality environment. Equipped with the JBL premium sound system, just sit back and the perfect drive awaits you.

HIGHLIGHTS

  • 8 speakers in 8 locations
  • Powerful Sound With deep bass
  • GREENEDGE® & CLARI-FI™ Technologies

System overview

System Overview 5 4 4 3 3 2 2 1 1
12 ×25 mm horn tweeters, A-pillars
22 ×80 mm wide dispersion midrange speakers, dashboard
32 ×150 mm full-range speakers, rear doors
42 ×170 mm subwoofers, front doors
5HiD8 amplifier with a total output of 800 watts
Corolla Touring Sports

Toyota Corolla Touring Sports

The Toyota Corolla Touring Sports has everything you’d expect: bold, dynamic styling that immediately catches the eye and an interior that offers a spacious, high-quality environment. Equipped with the JBL premium sound system, just sit back and the perfect drive awaits you.

HIGHLIGHTS

  • 8 speakers in 8 locations
  • Powerful Sound With deep bass
  • GREENEDGE® & CLARI-FI™ Technologies

System overview

System Overview 1 2 1 2 3 3 4 4 5 1 2 1 2 3 3 4 4 5
12 ×25 mm horn tweeters, A-pillars
22 ×80 mm wide dispersion midrange speakers, dashboard
32 ×150 mm full-range speakers, rear doors
42 ×170 mm subwoofers, front doors
5HiD8 amplifier with a total output of 800 watts
C-HR

Toyota C-HR

The athletic design of the Toyota C-HR gives the sensation of movement at standstill. It has been created to make you feel at one with the road, and together with the tailor-made JBL premium sound system that delivers closest-to-concert-hall sound, you can start your ride and flow through urban life.

HIGHLIGHTS

  • 9 speakers in 9 locations
  • Newly-designed horn tweeters
  • Lossless audio encoding

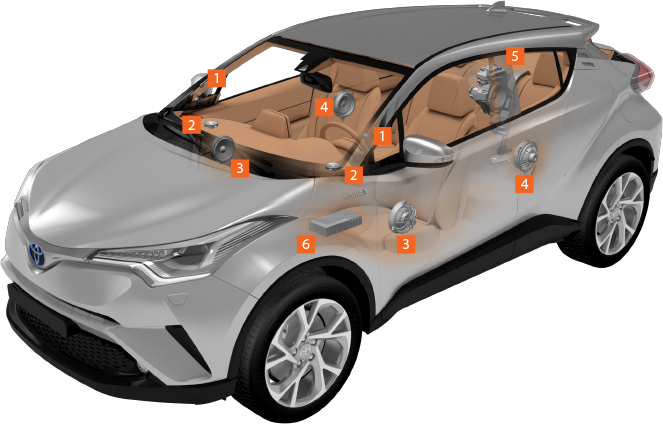

System overview

System Overview
12 ×25 mm horn tweeters (A-pillars)
22 ×80 mm wide dispersion midrange speakers (dashboard)
32 ×170 mm woofers (front doors)
42 ×150 mm full-ranges (rear doors)
51 ×190 mm subwoofer in a dedicated, 10-liter, ported enclosure
68-channel, 800-watt DSP HiD8 amplifier
Highlander

Toyota Highlander

This is the model copy of the Highlander

HIGHLIGHTS

  • 11 speakers in 11 locations
  • 1200 Watts HID12 Amplifier
  • Newly-designed horn tweeters

System overview

System Overview 6 5 4 4 3 3 2 2 1 1 1 1
14 ×80 mm Wide Dispersion Speaker
22 ×25 mm Horn Tweeter
32 ×Wide Dispersion Woofers 200 mm x 236 mm
42 ×150 mm Wide Dispersion Speaker
51 ×224 mm Dual Voice Coil Subwoofer
61 ×1.200 Watt HID12 Amplifier
Hilux

Toyota Hilux

This is the model copy of the Hilux

HIGHLIGHTS

  • 9 speakers in 9 locations
  • Newly-designed horn tweeters
  • Lossless audio encoding

System overview

System Overview 6 5 4 4 3 3 2 2 1 1
12 ×25 mm Tweeters (A-Pillar)
22 ×80 mm Wide Dispersion Speakers (IP)
32 ×170 mm Mid Woofers (Front Doors)
42 ×150 mm Full Range Speakers (Rear)
51 ×8-channel, 800-watt DSP HiD8 Amplifier (Under-seat)
61 ×224 mm Subwoofer
Land Cruiser 150

Toyota Land Cruiser 150

Capable by nature, the Toyota Land Cruiser’s off-road prowess meets on-road refinement. Its versatility is broadened even more in combination with the amazing JBL Synthesis® 7.1 Surround Sound. A full range of 14 custom-engineered speakers send a rich and stunning sound to every passenger onboard.

HIGHLIGHTS

  • 14 speakers in 14 locations
  • Accurate vocals and instruments
  • 2 HIGH-PERFORMANCE woofers

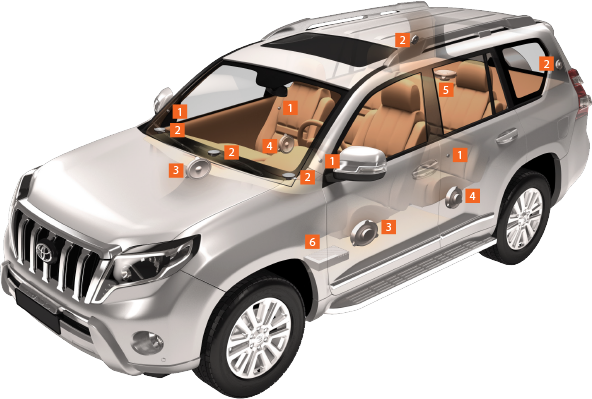

System overview

System Overview 1 1 1 1 2 2 2 2 2 3 3 4 4 5 6
14 ×25 mm horn tweeters, A-pillars and rear doors
25 ×80 mm midrange speakers, dashboard and D-pillars
32 ×203 x 229 mm woofers, front doors
42 ×150 mm full-range speakers, rear doors
51 ×224 mm subwoofer with 20 liter enclosure, rear
612-channel DSP amplifier with a total output of 605 watts
Prius

Toyota Prius

This space savvy and eco-conscious hybrid started it all. The Toyota Prius is undoubtedly a pioneering family car, perfect for anyone who wants to take great music everywhere. It’s also equipped with JBL GreenEdge® Technology that delivers dynamic performance with only half the power consumption.

HIGHLIGHTS

  • 8 speakers in 6 locations
  • balanced sound coverage
  • GreenEdge® Technology

System overview

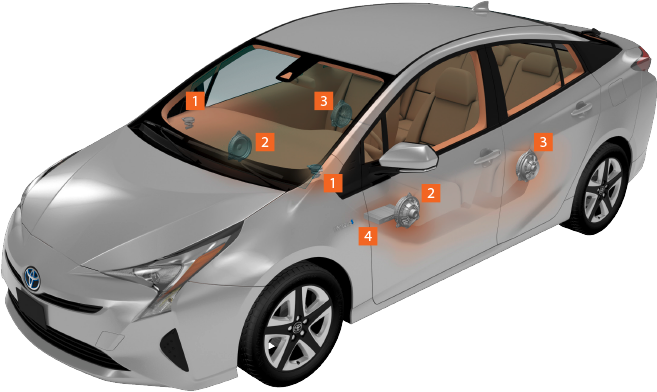

System Overview
12 ×Unity Extended Bandwidth speakers (80 mm midrange with 19 mm tweeter), at either end of the instrument panel
22 ×170 mm High-Efficiency (HiE) subwoofers
32 ×HiE coaxial speakers, each with 170 mm midrange speaker and 25 mm tweeter, in the rear doors
48-channel ~ 74 W / equivalent per channel Hi8 DSP amplifier
Prius+

Toyota Prius+

This space-savvy and eco-conscious hybrid started it all. The Toyota Prius+ is undoubtedly a pioneering family car, perfect for anyone who wants to take great music anywhere. It’s also equipped with JBL GreenEdge® technology that delivers dynamic performance with only half the power consumption

HIGHLIGHTS

  • 8 speakers in 6 locations
  • Balanced sound coverage
  • GreenEdge® Technology

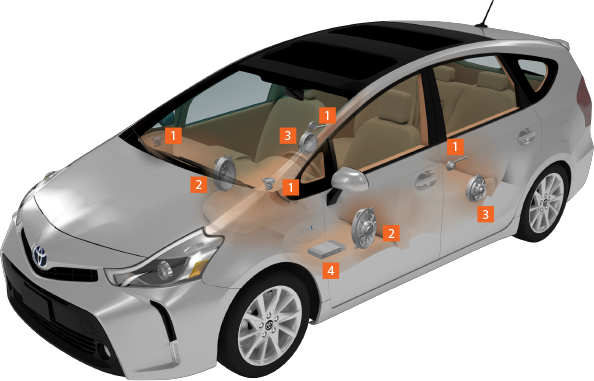

System overview

System Overview
14 ×25 mm horn-loaded High-Efficiency (HiE) tweeters
22 ×180 x 250 mm High-Efficiency (HiE) woofers
32 ×170 mm High-Efficiency (HiE) full range woofers in the rear doors
48-channel ~ 74 W / equivalent per channel Hi8 DSP amplifier
RAV4

Toyota RAV4

Stylish, smart and adventurous – the Toyota RAV4 is not only famed for its reliability, it happily accommodates people, cargo and a JBL premium sound system. With enveloping surround sound and eco-friendly technology, every passenger enjoys a powerful audio performance.

HIGHLIGHTS

  • 9 speakers in 9 locations
  • Powerful performance in every seat
  • RICH AND UNCOMPRESSED SOUND WITH CLARI-FI™

System overview

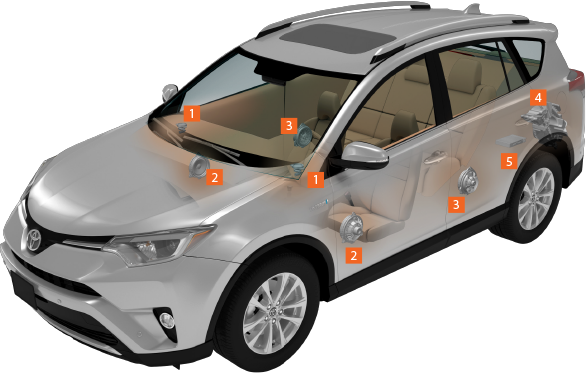

System Overview 1 1 2 2 3 3 4 4 5 6
12 ×25 mm horn tweeters, A-pillars
22 ×80 mm wide dispersion speakers, dashboard
32 ×170 mm wide dispersion speakers, front doors
42 ×150 mm full-range speakers, rear doors
51 ×224 mm subwoofer, rear
68-channel DSP amplifier with 800 watts, trunk
Yaris

Toyota Yaris

This is the model copy of the Yaris

HIGHLIGHTS

  • 9 speakers in 9 locations
  • Newly-designed horn tweeters
  • Lossless audio encoding

System overview

System Overview 5 4 4 3 3 2 2 1 1
12 ×25 mm Horn Tweeters (A-Pillar)
22 ×80 mm Wide Dispersion Speakers (IP)
32 ×170 mm Inverted Subwoofers (Front Doors)
42 ×150 mm Full Range Speakers (Rear)
58-channel, 800 Watt, DSP Amplifier (Under-seat)
Yaris Cross

Toyota Yaris Cross

This is the model copy of the Yaris Cross

HIGHLIGHTS

  • 9 speakers in 9 locations
  • Newly-designed horn tweeters
  • Lossless audio encoding

System overview

System Overview 5 4 4 3 3 2 2 1 1
12 ×25 mm Horn Tweeters (A-Pillar, left and right)
22 ×80 mm Wide Dispersion Speakers (IP, left and right)
32 ×170 mm Inverted Subwoofers (Front Doors)
42 ×150 mm Full Range Speakers (Rear)
58-channel, 800 Watt, DSP Amplifier (Under-seat)
  • CLARI-FI™ TECHNOLOGY

    CLARI-FI™ TECHNOLOGY

    TRANSFORMS the listening experience by restoring lost audio signals.
    DELIVERS a rich, uncompressed listening experience from any music source.
    IMPROVES audio quality into clearer, crisper, wider and more dynamic sound

JBL System benefits

At JBL, we strongly believe in first-class quality music reproduction. Music must always preserve its character and nature. Music is meant to be a full and rich emotional experience. The attitude determines how we see and use technology. For JBL, technology has one purpose and one purpose only – to serve the music!

  • TAILOR-MADE

    Every detail of the JBL sound system is precisely tuned to the interior of each Toyota model. The result is a sound system which perfectly matches the design and individual nature of your Toyota.

  • Sound from the
    big stages

    JBL’s many years of experience as a professional supplier of equipment for numerous mega music events and as a reliable partner to many international stars brings the sound of the big stage right into your Toyota.

  • Outstanding Performance

    At JBL we only use high-quality materials. Therefore the JBL sound systems delivers crisp and clear sound. The amazing clarity and depth of the JBL sound makes you feel like the concert is happening in your Toyota.
